The Great Race (Group 11)

Software Requirements Specifications

COP 4331C Fall 2014

Software to be Produced
This project is an android game where the game master sets up the start and destination locations on the map. Two or more individuals/teams can play the game, each member of course has to carry around the smart phone with the GPS to see the map and where the destination is. The game must track the paths of the players, from the start of the game to the end, after which the paths the teams took can be erased. As in all racing games, the goal is to get from point A to point B, what makes this an interesting game/project, is that the teams can track each other since the game shows where everyone is located, and they use their phones to navigate to reach the final destination. The dots/pictures representing each player/team should have the team's name, picture... Whoever reaches the destination first, wins. This game is sort of like "adventure racing", long distance. The transportation (bikes, planes, automobiles...) options and what is allowed to use, is specified by the game master.

Reference Documents
Concept of Operations
Test Plan

Applicable Standards
None Apply.

Definitions, Acronyms, and Abbreviations

GPS - Global Positioning System
ID - Identification
OS - Operating System

Assumptions

Assume application can grab GPS points and display them on google maps.
Assume the data base will have enough memory space for the GPS data points.
Assume the player will have constant data connection

Stakeholders

Development team

Our interest with this product is our concern for our grade.

Teacher

The teacher will be evaluation how well we are implementing the course material.

TA’s

The TA’s are commissioning the project thus want a working product that fits their needs.

End Users

The end user expects to have a working application to be able to have recreational enjoyment.

Event Table

Event Name	External Stimuli	External Response	Internal data and state
Create Game	The user initiates game with a button/screen press.	Brings up details for game parameters and allows.	The game session is sent to the server for others to join.
Start Game	The user starts the game with a button/screen press.	The map starts tracking player locations.	The game collects data points of the player’s locations and store them in the server. The game loads the other player’s locations from the server and displays them on the map.
Leave Game	The user leaves the game with a button/screen press or by reaching the finish line.	The game stops tracking all player locations and gives the option to start /join a new game.	The game stops tracking locations, mark game session as complete, and wait for user input.
Join Game	The user joins a game with a button/screen press.	The game allows the users to enter a game id and join a premade game.	The game checks if the game id is valid. If it is it connects the player to the game. If it is not, the game displays an error message.
Start Application	The user starts the application.	The game home screen appears.	The game loads data required from main functionality.

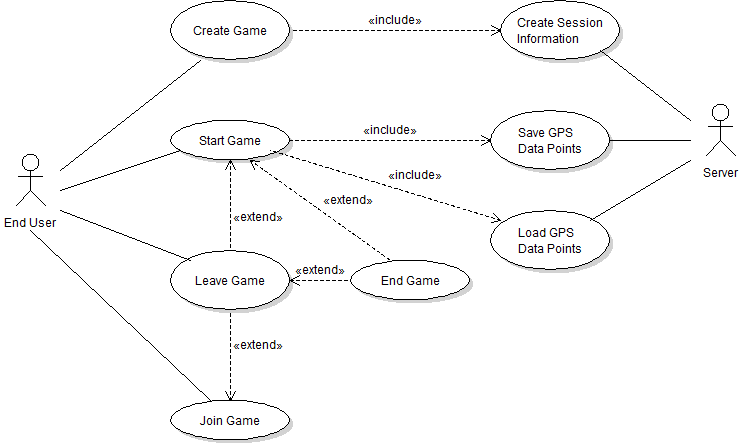

Use Case Diagram

Use Case Description

The user is able to create a game session. When the game is created, the session info is stored on the server.
The user can join a game session. The user has the option to leave the game.
The user can start the game. Players have the option to leave the game. The game starts saving and loading GPS data points. The game ends when certain requirements are met.

Functional Requirements

No.	0001 (Validating Session ID)
Statement	The application shall validate the game session ID the user attempts to join
Source	From development team
Dependency	None
Conflicts	None
Supporting Material	None
Evaluation Method	If the session ID is valid, the application will join the game. If the session ID is invalid, the application will display an error message.
Revision History	Created 9/15/2014

No.	0002 (Communication Failure)
Statement	In the event of a communication failure the application shall attempt to re-establish a communication with server.
Source	From development team
Dependency	None
Conflicts	None
Supporting Material	None
Evaluation Method	If no connection can be established an error message will be displayed and the user will be dropped from the game.
Revision History	Created 9/15/2014

No.	0003 (Create Game)
Statement	Upon creation of game the session should initialize on the server storing the game info.
Source	From development team
Dependency	None
Conflicts	None
Supporting Material	None
Evaluation Method	Test to see if the session id and info exists if so send data to players/teams otherwise display message that session was not created.
Revision History	Created 9/15/2014

No.	0004 (Join Game)
Statement	User should be able to enter a session id to join an existing game.
Source	From development team
Dependency	Create game (0003)
Conflicts	None
Supporting Material	Validating Session ID (0001)
Evaluation Method	If the user can’t join a game display a message that game could not be joined otherwise let player enter game session.
Revision History	Created 9/15/2014

No.	0005 (Starting Game)
Statement	The application shall start tracking GPS locations of players/teams and continue until an end game condition has been fulfilled or the game was prematurely terminated.
Source	From development team
Dependency	Create Game (0003)
Conflicts	None
Supporting Material	None
Evaluation Method	The application will display a screen saying the game has started as well as start displaying data points on the map.
Revision History	Created 9/15/2014

No.	0006 (Loading GPS Points)
Statement	The application should start loading GPS points from the server and displaying them on the map.
Source	From development team
Dependency	Start Game (0005), Tracking Location of Player(0008)
Conflicts	None
Supporting Material	None
Evaluation Method	The application should attempt to retrieve the data points from the server and display them to the map. If it can’t do so display an error that the points could not be retrieved from the server.
Revision History	Created 9/15/2014

No.	0007 (Load Game Rules)
Statement	The application should start loading the rules from the server and displaying them on the application.
Source	From development team
Dependency	Join Game (0004)
Conflicts	None
Supporting Material	None
Evaluation Method	The application should attempt to retrieve the rules from the server and display them to the application. If it can’t do so display an error that the rules could not be retrieved from the server.
Revision History	Created 9/15/2014

No.	0008 (Tracking Location of Player)
Statement	The application should send a GPS location to the server to save.
Source	From development team
Dependency	Start Game (0005)
Conflicts	None
Supporting Material	Loading GPS Points (0006)
Evaluation Method	None
Revision History	Created 9/15/2014

No.	0009 (End Game)
Statement	Check to see if the player/team has reached the goal location or the game was prematurely ended. Stops sending GPS points to server.
Source	From development team
Dependency	None
Conflicts	None
Supporting Material	Load Game Rules (0007)
Evaluation Method	The game should display a message based on how the game was ended.
Revision History	Created 9/15/2014

No.	0010 (Quit Game)
Statement	Allow user to leave the game session and stops sending GPS points to server.
Source	From development team
Dependency	Join game (0004)
Conflicts	None
Supporting Material	None
Evaluation Method	The game should display a message that player is no longer in game.
Revision History	Created 9/15/2014

Interface Requirements

No.	0011 (Google Maps)
Statement	Applications should support Google Maps application
Source	From development team
Dependency	Within cell service (0015)
Conflicts	None
Supporting Material	Load Game Rules (0007)
Evaluation Method	None
Revision History	Created 9/15/2014

No.	0012 (Load Gps Point within 30 Seconds)
Statement	GPS data points are saved in 30 second intervals
Source	From development team
Dependency	Start Game (0005), Within Cell Service (0015)
Conflicts	None
Supporting Material	Load GPS Points (0006)
Evaluation Method	Record the amount of time it takes between GPS point beginning displayed on the application
Revision History	Created 9/15/2014

Physical Requirements

No.	0013 (Android OS)
Statement	Requires Android OS system to run
Source	From development team
Dependency	Smart Portable Device (0014)
Conflicts	None
Supporting Material	None
Evaluation Method	Does it run on the Android OS
Revision History	Created 9/15/2014

No.	0014 (Smart Portable Device)
Statement	Requires Smart Portable Device
Source	From development team
Dependency	None
Conflicts	None
Supporting Material	None
Evaluation Method	It is in your hand and is about the size of a normal phone
Revision History	Created 9/15/2014

No.	0015 (Within Cell Service)
Statement	Requires data connectivity
Source	From development team
Dependency	Smart Portable Device (0014)
Conflicts	None
Supporting Material	None
Evaluation Method	Does cell phone have one or more bars
Revision History	Created 9/15/2014

User Factors

No.	0016 (End Users)
Statement	These are the end users that will be playing the game.
Source	From development team
Dependency	Smart Portable Device (0014)
Conflicts	None
Supporting Material	None
Evaluation Method	None
Revision History	Created 9/15/2014

No.	0017 (Naive)
Statement	Skill level must be basic smart phone knowledge, naive
Source	From development team
Dependency	None
Conflicts	None
Supporting Material	None
Evaluation Method	Assumed
Revision History	Created 9/15/2014

Documentation Requirements

No.	0018 (Read English)
Statement	Require player to be able to read English
Source	From development team
Dependency	None
Conflicts	None
Supporting Material	None
Evaluation Method	Assumed
Revision History	Created 9/15/2014

No.	0019 (User Manual)
Statement	User manual will be integrated into the application
Source	From development team
Dependency	English (0018)
Conflicts	None
Supporting Material	None
Evaluation Method	Able to access the user manual screen through the application
Revision History	Created 9/15/2014

Data Requirement

No.	0020 (GPS Storage)
Statement	GPS data points will be stored in the database on a data table
Source	From development team
Dependency	Send GPS location (0008)
Conflicts	None
Supporting Material	None
Evaluation Method	Check database for GPS points in table
Revision History	Created 9/15/2014

No.	0021 (Session Storage)
Statement	Game session info will be stored in the database on a data table
Source	From development team
Dependency	Load Game Rules (0007)
Conflicts	None
Supporting Material	None
Evaluation Method	Check database for session info accuracy
Revision History	Created 9/15/2014

No.	0022 (Application Storage)
Statement	Device must have enough storage to hold application.
Source	From development team
Dependency	Smart Portable Device (0014)
Conflicts	None
Supporting Material	None
Evaluation Method	Check for storage space before installing
Revision History	Created 9/15/2014
