Design Issues:
The calendar contains all of
the times and dates associated with patient’s medicine and appointments with
their physician. The interface will support Google’s plug in API calendar. This
choice was made to reduce development time and to use a familiar calendar
scheme that is currently used by millions. Furthermore, this design decision
ensures portability.
This module interacts with the
database upon selecting the calendar. As with the other modules it is
imperative that the load times are limited to three seconds to avoid
frustration. The load times for the calendar will occur each time a new month
or week is selected. In order to keep the load times less than three seconds
communication between the database and the calendar must be efficient.
The design of the calendar will
not allow patients to add any events to the calendar. The calendar will only be
able to be managed by the doctor to avoid any accidental dosages taken by the
patient. This is of the utmost importance as failure to adhere to the calendar
could result in severe sickness or death.
Once the prototype is developed
it will be integrated with the Database Manager. The biggest risk lies in this
step. The calendar is completely dependant on communication with the database,
without it the calendar has no functionality. I will have to work closely with
the team to eliminate this risk.
Detailed Design Information:
Classes
Patient
–
In the event of a successful login the patient view the doctor’s calendar or
sync their own with the doctors, which is stored in the Database
Doctor – The
doctor can add events, such as an appointment, and save it to the database for
a patient to view.
Database – The
database calls the Google Calendar API, which communicates with the Google
Calendar Database

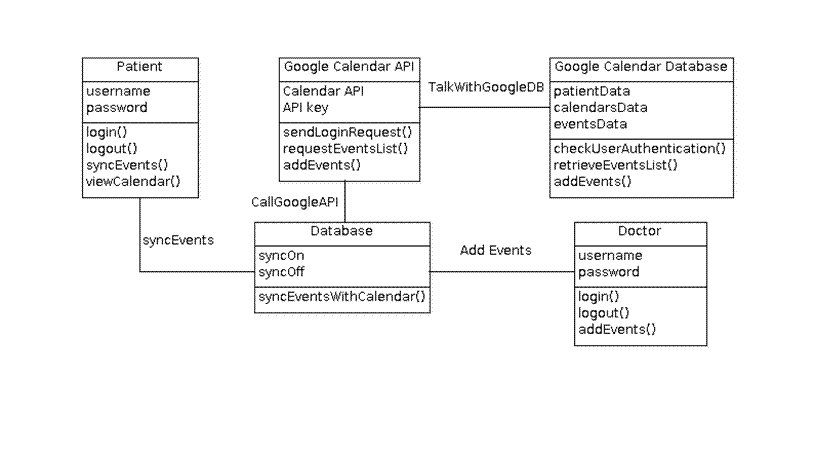

Class
Diagram

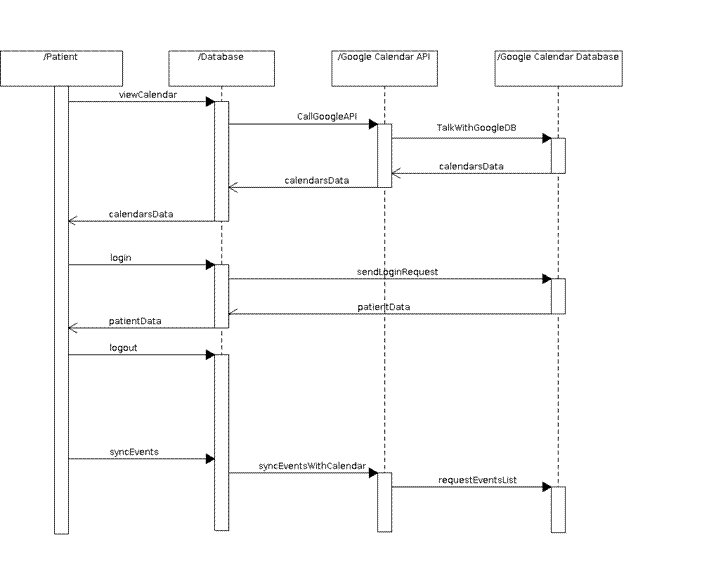

Sequence
Diagram
Trace of Requirements to Design:
|
Item
Description |
Detailed
Design Section |
Document
of Origin |
Sections
of Origin |
|
Overall functionality of
Calendar |
Detailed Design Information |
Users of Modes and Operation |
Concept of Operations |
|
Add Event |
Event Sequence Diagram |
Software Requirements
Specification |
3.4 |
|
View Calendar |
Event Sequence Diagram |
Software Requirements
Specification |
3.5 |
