Control-flow analysis (CFG)
Compiler Project

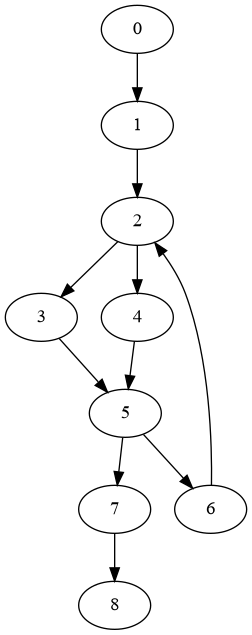

• Each block is numbered sequentially starting from 0
• The entry block is always block 0
• The exit block is always the last block (len(nodes) - 1)
• Edges are between block numbers, e.g., (3, 5)
• Instructions are stored on blocks in the instrs attribute as a list of While3Addr instructions, i.e., cfg[node]["instrs"]
• ifgoto edges are labeled with the condition attribute as a python Boolean (True or False), i.e., cfg[node][succ]["condition"]
• Goto instructions are removed from the ends of basic block, since their meaning is captured by the out-edge.
• IfGoto instructions are replaced with a Test instruction, which is an IfGoto without the target. Instead the two out-edges and the condition reflect the same behavior.

1. Collect the leaders of the basic blocks (This is the minimum you need to implement for the project)
   1. Add leader for the starting line 0
   2. Add an exit block leader after the last line len(prog)
   3. Add all target lines of Goto and IfGoto
   4. Add all lines after Goto and IfGoto
2. Collect the list of instructions in each basic block
3. Collect the edges between the blocks
   • Find the Goto, IfGoto, or next line.
   • Remove Goto and replace IfGotos with =Test=s
4. Construct the CFG from the nodes and edges

For your project, the minimum needed is to implement #1 inside the provided template for ControlFlow.py.

If you would like more of a challenge, try writing controlflow from scratch, or only take parts of the provided template code or use ir only as a reference.

The controlflow function takes prog as input, which is a python list of While3Addr instructions.

The set leaders = set() is initialized in the template code with

• the line for the entry block leaders.add(0) (since the IR starts at one, 0 can be used as the leader for the entry block) and
• The line for the exit block, i.e., exitblock = len(prog) then add the leader leaders.add(exitblock)

Loop over each line number in the input While3Addr program (prog) and check for Gotos and IfGotos. The While3Addr data types make matching easy with the match=/=case construct, e.g., matching the Goto instruction would look like this:

match instr:
  case Goto(pc):
    print("i see a goto with target", pc)

match takes the instruction object and case pattern matches the instruction datatype, taking the name and a tuple containing the members of the datatype, e.g., Goto(pc), Op(var, left, op, right), etc. (See While3Addr.py for all instruction datatype specifications.)

Add the leaders for each basic block to the leaders set.

An easy way to do this is to sort the set of leaders in a list, then get the ranges of instructions that each basic block will contain using this sorted list of leaders.

Finally, loop over each range and construct the list of instructions for each basic block from the original list of instruction prog.

Be sure to add an empty list the exit block.

To facilitate creating the edges, you can also at this step create a mapping from leader number to basic block number. Since the entry block is always 0, start the basic block counter from 1 when numbering basic blocks for instructions in the IR.

There will be three kinds of edges constructed, one for each of the types of leaders, e.g., (1) edges from Gotos, (2) edges from IfGotos, and (3) edges to the leaders after Goto/IfGoto.

Edges are just pairs of block numbers, e.g., (3, 5). This step will collect a list of these pairs.

For each range of instructions, check the last instruction to see what kind of edge to construct. You can use match=/=case make this checking easier.

1. Goto edges: create the pair for the current block number (determined by the current block's leader) and the target block number (determined from the Goto's target leader).

   Remove the Goto per our compiler's graph structure.

2. IfGoto edges: Create two edges, one for True and one for False, e.g.,

   (bbnums[leader], bbnums[targetpc], {'condition': True})


   Remove the IfGoto and add a Test with the same variable and operator at the IfGoto.

3. Edges to the leaders after Goto/IfGoto: just add a new edge between the two block numbers.

Create the nodes, which contain tuples of the block number and 'instrs' attribute, e.g.,

(bbnums[leader], {'instrs': bbinstrs[leader]})

Create the entry node with an empty list of instructions and the edge between the entry node and the first basic block of the program.

Then use networkx to construct the graph structure:

cfg = nx.DiGraph()
cfg.add_nodes_from(nodes)
cfg.add_edges_from(edges)

If you'd like to see in more detail how to inspect and use the networkx API to work with the CFG, see GraphView.py and CFG2IR.py for examples.

• cfg.nodes gets a list of basic blocks (nodes)
• cfg[node] gets one of the basic blocks
• cfg[node]["instrs"] gets the list of instructions in the basic block
• cfg[node][successor]["condition"] gets the condition (Boolean True or False) from the edge, if its an ifgoto edge.
